Description

Brand: Rsrteng

Color: Black

Features:

• Model: IPC-9800MOVTADHS plus+. Full Features. 7 inch IPS touch screen, 1920*1200 resolution. Support Digital Multimeter, Optical power meter, Visual fault locator, TDR cable test and Support H.265, H .264, 4K,OVIF, PoE, WiFi, 10/100/1000M Ethernet, RS485, Audio in, LED lamp, Built-in 7500mAhBattery.
• 【IP Camera Tester】 HD camera tester support max 12MP 4K /H.265/H.264 IP camera test. Rapid Video Auto view the video, create testing report. IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK. Hik test tool(pressing just one key to activate Hik camera , Image test, modify the user name, PW and IP parameters). DH test tool (DH camera test, modify the username, PW and IP parameters).Create WIFI hotspot,WIFI analyzer.
• 【HD Coaxial Camera Test & Cable Tracer】Max 8MP TVI/AHD/CVI/EX-SDI,HD-SDI,3G-SDI camera test and also support CVBS camera test,NTSC/PAL(Auto adapt).Color bar generator.Analog level test,Built-in “Auto HD” APP can automatically recognize the camera type.Support Coaxial UTC control & call OSD menu,RS485 control,compatible with more than 30 protocols such as for PELCO-D/P etc. With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables.
• 【DMM&OPM&VFL&TDR Test】Digital Multimeter—DC and AC voltage measurement,Resistance measurement,Continuity test,Diode measurements,Capacitance measurement.Optical Power Meter—Calibration wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm. Red Visible Laser Light Source—Laser type:LD;Calibration wavelength:650nm;Output power:10mW;Modulation mode: CW/1Hz/2Hz;Measuring range 8000 meter;Connector:Active FC/PC;TDR cable Breakpoint Test—Measurable metal cable’s length and short circuit.
• 【Battery & Quality Assurance】Built-in 7.6V/7800mAh/59.28Wh battery.DC5V/2A,12V/3A,24V/2A,48V POE power output.After charging 4 hours, normal working time 15 hours.Tester Dimension/Net weight 9.4 x 5.3 x 1.4 inch/0.94kg(2.31lbs).Continue to browse our web page to get more detailed parameters.We tested every cctv camera tester before sent it,to ensure that you will not receive defective products.We offer 24h technical support and 1 year warranty.If there are any issues,pls feel free to contact us.

---

Product Description

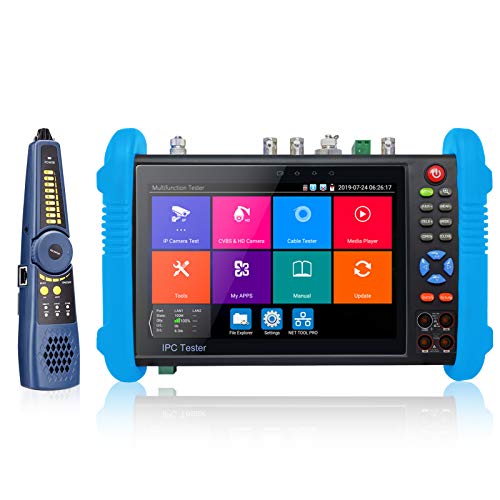

Rsrteng IPC-9800MOVTADHS plus+ IP Camera Tester 7 inch IPS Touch Screen Monitor 6 in1 Multiple type Camera Test Support DMM TDR OPM VFL CCTV Tester

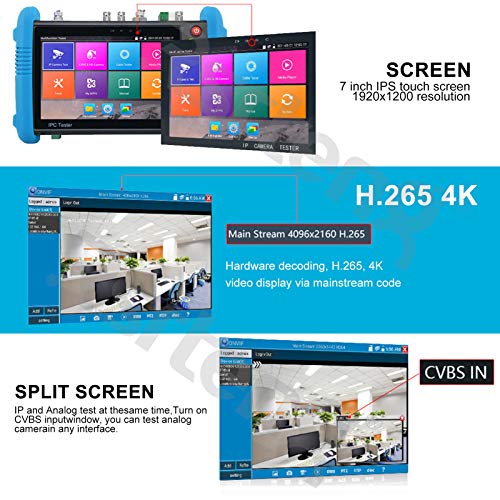

The Rsrteng IPC-9800MOVTADHS plus+ 4K camera tester is used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and security system. The tester uses a 7-inch 1920x1200P high-definition touch screen, so the operation becomes simple and fast. Support max 12MP IP camera and max 4K 8MP coaxial HD camera test; Suppot TDR Cable Test, Digital-Multimeters, Optic Power Meters, Visible laser light source, POE, WIFI; DC 5V.2A/12V.3A/24V.2A power output; Multiple professional tests are built-in APP, compatible with more than 90% of existing brand cameras. Use it to make your installation process simple and efficient.

SUPPORT CAMERA TYPE

• IP camera test:

Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.

• Coaxial HD camera test:

Max 4K 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu.

• CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc. Support PAL/NTSC color bar test.

• AXIS IP cameras test：

Install the APP “Axs test tool” suitable for AXIS testing through automatic update before testing.

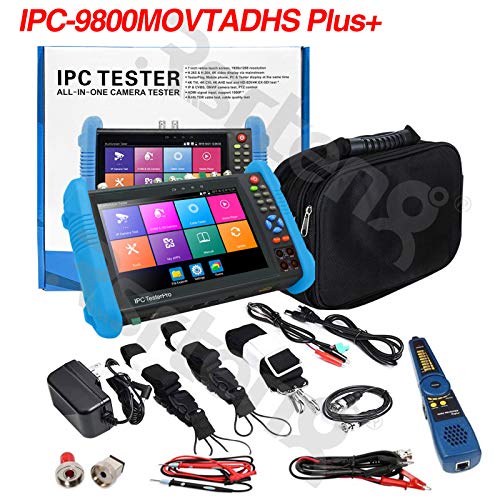

What’s in the Package

• What’s in the Package

1*Tool Bag; 1*Power adapter; 3*Shoulder Strap; 1*TDR test cable; 1*Wire Finder; 1*Power output cable; 1*BNC video cable; 1*RS485 control cable;1*Multimeter Test cable; 2*Fiber Optic Test Adapters;







Test tool for HIK & DH & others brand security cameras



• Support batch activate Hik & DH cameras and modify IP address, modify password etc & self-defined modify channel name；For HIK Test tool can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
• Support snapshot, video record & playback, coaxial PTZ & call OSD menu;
• Rapid OVIF, Auto log in and display image, create testing report. Compatible with more than 90% of existing brand cameras.



Flashlights & Power supply

• DC power output

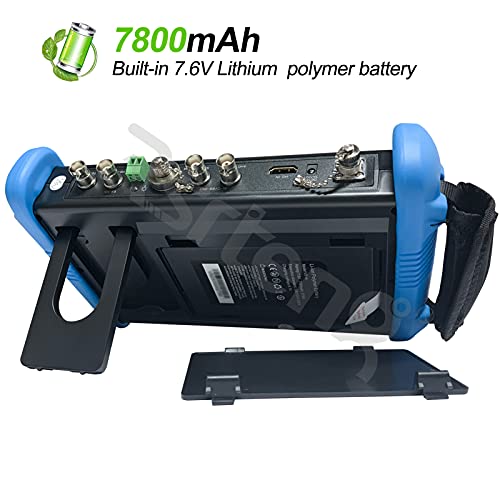

Built-in 7.6V 7800mAh 59.28Wh lithium-lon polymer battery. Support DC 5V.2A/12V.3A/24V.2A power output, provide power supply for the camera, so that the camera test more convenient, you can test the camera anywhere, anytime.

• Flashlight

The flashlight function of the tester can provide lighting for you in a dark working environment.
